Description

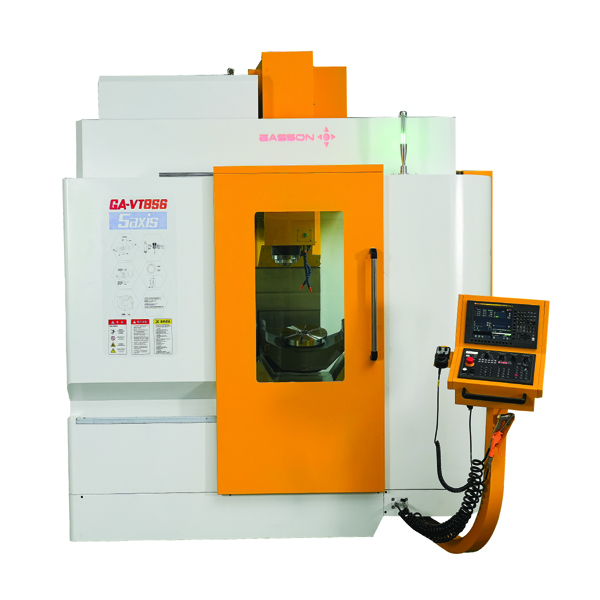

| Model | GA-VT856 |
| X/Y/Z Travel Rang | 800*550*600mm |
| 3 Axis Guideways | THK Precision Linear Guide, THK Ball Screw Rod |
| Spindle | BBT40 Φ155mm,15000rpm, Direct Type Spindle |
| Tool Magazine | BT40 32T Servo |
| Distance from Spindle Nose to Worktable | 100-700mm |
| 3 Axis Fast Moving Speed | 24m/min |
| 5-Axis Cradle | DDS320-500, Rotary table size: Φ320mm, Max. workpiece swing diameter: Φ500mm, Max.workpiece load: 80kgs |
| A-Axis | Travel: ±120°, Max. Speed: 170rpm, Rated Torque: 406N.m, Positioning Accuracy: ±10’’, Repeatability: 5’’ |
| C-Axis | Travel: ±360°, Max. Speed: 386rpm, Rated Torque: 122N.m, Positioning Accuracy: ±10’’, Repeatability: 5’’ |
| Braking Mode | A-axis Clamp Brake, C-axis Pneumatic Brake |
